Building from three aspects: intelligent perception, intelligent decision-making, and intelligent control, the overall architecture is built based on the 1+3+N system, which includes one set of basic services, three types of intelligent hardware equipment, and N intelligent applications.

1. By accurately measuring the basic parameters of the mine ventilation system and testing the performance of the main ventilation fan, digital modeling of the mine is realized, and an accurate ventilation network calculation model is established.

2. Cooperate with the industry's top hardware manufacturers of ventilation doors, windows, and local ventilation fans to provide high-quality upgrading and renovation services for mine ventilation equipment, to achieve equipment intelligence.

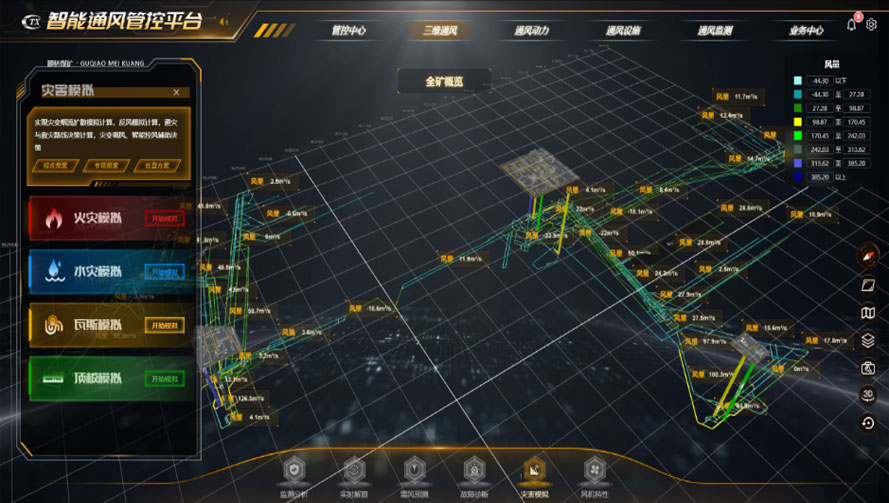

3. Empower the intelligent ventilation system, create N intelligent applications, and realize functions such as 3D ventilation system design, dynamic calculation of ventilation network, intelligent air regulation, prediction of required air volume at air usage locations, dynamic simulation of ventilation process, diagnosis and warning of ventilation system faults, intelligent selection of ventilation schemes, and disaster assistance decision-making, to safeguard mine safety production.

System composition diagram
