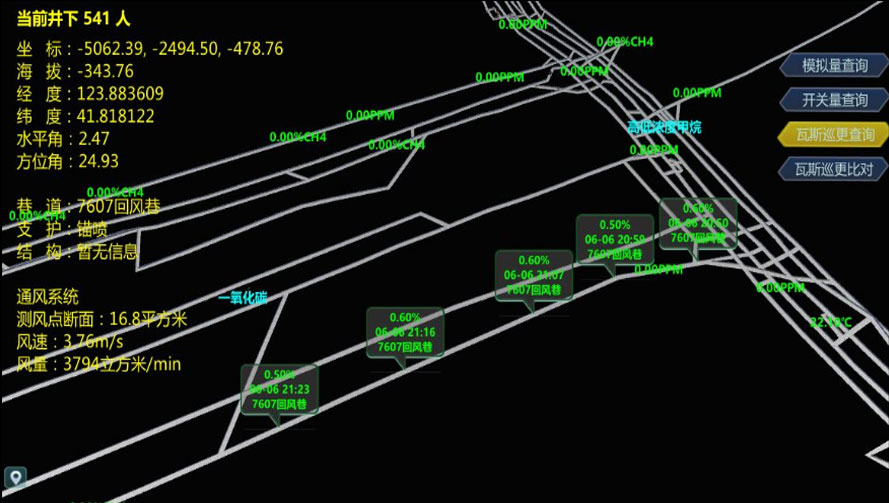

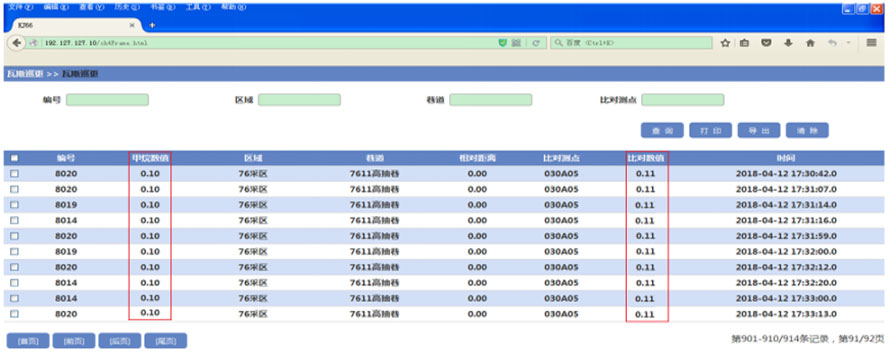

The system combines geographic information technology and gas patrol technology, which can monitor the gas concentration in coal mines in real time and accurately locate the location of gas leaks. The core technology includes the multi network integrated operating platform RED-MOS®､ 3D dynamic GIS basic display platform RED-GIS®､ 4G/5G/WIFI6 networking technology, transmitting real-time data information collected by mobile terminals underground to the ground, and combined with RED-GIS®, the system completes the detection of methane gas concentration at the locations of multiple mobile terminals and the tracking management of operators, the system can accurately locate the specific location of gas leakage, providing important basis for taking corresponding safety measures.

System composition diagram
